The Epos ES7n 402 speaker stands include a 4mm inert, acoustic steel top plate, CR4 steel base plates and with zinc plated M8 fixing bolts for joint, interface rigidity. The hand polished/finished steel plates connect to an ERW BS EN 10305-3 steel 50.8 x 50.8mm tube as standard for sound quality and as part of the Custom Design attention to detail philosophy.
Custom Design manufacture the world renowned Inert, Acoustic Steel isolating and Inert, Aluminium isolating products for total performance.
Mass loading the steel support columns with Inert Filler adds to the final mass, recommending 1 bag of Inert Filler (1.7kg) per support column, improving the performance of your Epos 402 Speaker Stands, particularly to the bass frequency, with better precision timing and depth to the bass.
These modern, contemporary Epos 402 speaker stands have true aesthetic appeal. When combined with Inert Acoustic steel Top plates, CR4 steel Base plates the reduction in resonance noise vibration is significant, resulting in an improved performance and sound quality. Please visit our Acoustic Steel page to view the graph demonstrating which frequencies of resonance vibration noise are absorbed by each process and the combination of Acoustic Steel top and base plates with our specially selected Inert Filler material.
Epos ES7n 402 Speaker Stands are supplied as standard with 4mm Acoustic Steel Isolation Top plates constrained layer dampening system which converts resonance energy to negligible heat with patented polymer
Epos ES7n Acoustic Steel Isolation Top Support 190 x 245mm with speaker fixing point holes included Epos ES7n Base Plate dimensions 230 x 270 x 4mm CR4 steel for a superior finish.
Cable tidy management steel base plate to prevent any resonance occurring inside the support column and effecting sound performance
Black Zinc plated M8 Base Isolation spikes with Allen Key adjustable facility supplied as standard.
M8 Black Zinc plated easy access complimenting spike covers supplied as standard.
Cable management slot and discrete logo precision laser cut into the CR4 steel base plate.
Standard height available 700mm not including base isolation spike allow 25mm (Custom Heights available on request)
1.5 Bag of Inert Filler Recommended per support column (690mm High)
Inert Filler Custom Design Specialist Mass Loading speaker stand Material optional extra £5.99 per bag or £39.99 for box of 8
Epos ES7n 402 Speaker stands available in Fine Black Texture epoxy powered coating.

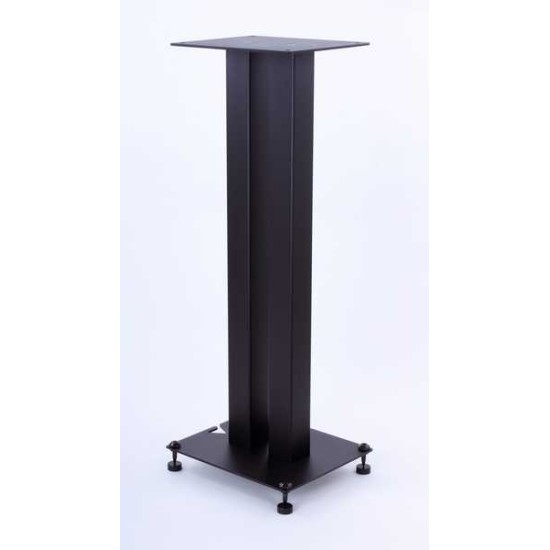

Image: Epos ES7n 402 Speaker stands in Black Steel 190 x 245mm acoustic steel isolation top plates, CR4 Black Steel base plate with cable tidy management slot
HiFi Isolation Isolation Accessory 25mm dia solid aluminium black floor protectors optional extra £39.99 set of 8

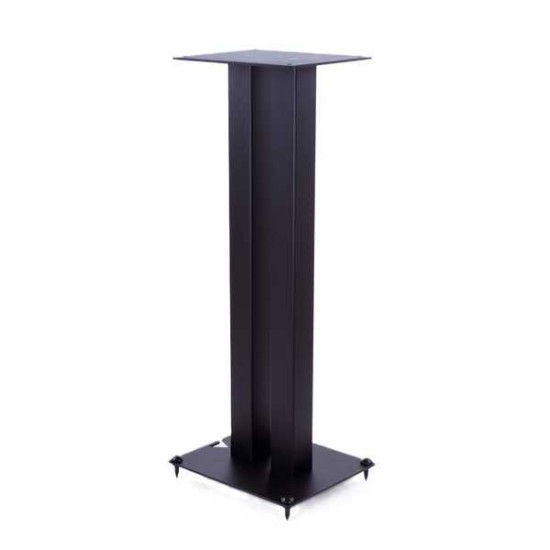

Image: Epos ES7n 402 Speaker stands in Black Steel side view 190 x 245mm acoustic steel isolation top plates
Image: Epos ES7n 402 Speaker stands in Black Steel side view 190 x 245mm acoustic steel isolation top plates
HiFi Isolation Isolation Accessory 25mm dia solid aluminium black floor protectors optional extra £39.99 set of 8

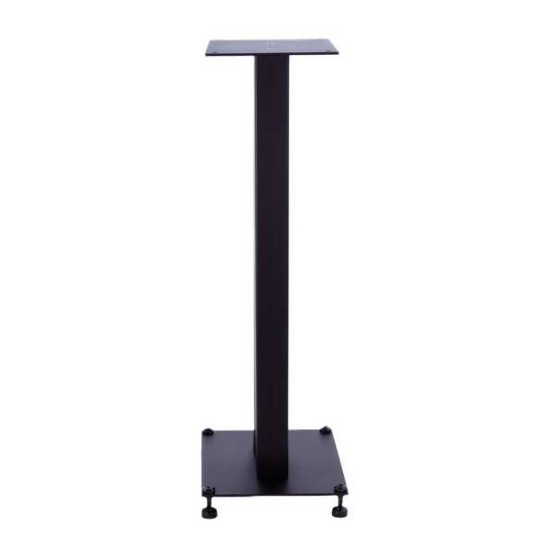

Image: Epos ES7n 402 Speaker stands in Black Steel front view 190 x 245mm acoustic steel isolation top plates
HiFi Isolation Isolation Accessory 25mm dia solid aluminium black floor protectors optional extra £39.99 set of 8

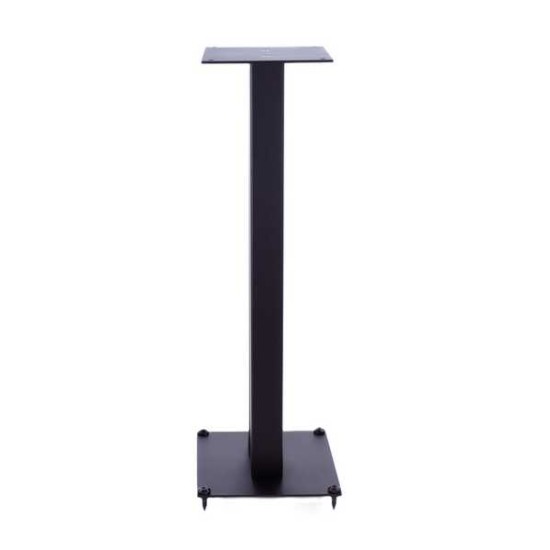

Image: Epos ES7n 402 Speaker stands in Black Front view 190 x 245mm acoustic steel

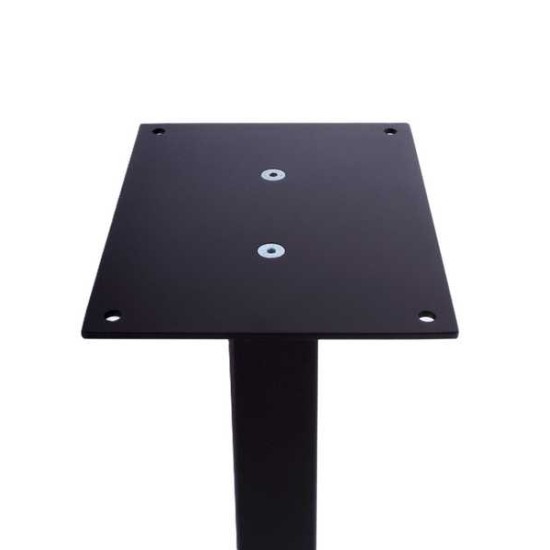

Image: Epos ES7n 402 Speaker stands in black with Acoustic STeel Isolation Top Plate 190 x 245 x 4mm with fixing holes. The Acoustic Steel operates as a constrained layer dampening system converting unwanted resonance energy to negiliable heat with a patented polymer system. Unique to Custom Design.
Image: Epos ES7n 402 Speaker stands in Black Steel side view 190 x 245mm acoustic steel isolation top plates
Image: HiFi Isolation Isolation Accessories 25mm dia solid aluminium black floor protectors optional extra £39.99 set of 8
Image: Inert Filler specialist mass loading speaker stand material, high mass, very dense particles perfect for killing resonance energy in speaker stand supports.
Image: Hifi Isolation Platform Acoustic Sinc iRAP
Image: HiFi Isolation Accessories Black Zinc Plated M8 Base Isolation spikes with complimenting spike covers supplied as standard
Hifi Isolation Accessories 25mm dia Polished Chrome solid aluminium floor protectors optional extra £39.99
Image: Epos ES7n 402 Speaker stands in Black (Steel) with 4mm Steel base - Set 8 Solid Aluminium Floor Protectors optional extra £39.9
Speaker Stands HiFi Stands HiFi Furniture HiFi Supports HiFi Tables Designed and Engineered by Custom Design in the UK
