Turntable Isolation Support WMB G4 (Forth Generation)

HiFi Equipment Isolation Stand Turntable Isolation Support HiFI Equipment Stand Custom Design WMB G4 wall mount bracket HiFi Isolation Table HiFi Isolation Support WMB 4G Forth Generation Design Copyright © to Custom Design (Newcastle) 2022 Wall Mount Bracket HiFi equipment isolation Support HiFi Equipment Isolation Table WMB 4G Turntable Isolation Support.


Custom Designs philosophy is to achieve business through product and service success, with a responsibility to social and environmental friendly practices to every product we design and manufacture. It is an integral part of our company's values and one of the main reasons for our success over the past 35 years.
The Custom Design forth generation WMB G4 is hand built by the skilled workforce and available in Black finish. The WMB G4 provides you with an alternative solution requiring specific hifi isolation support for your Turntable.
Designed with Black zinc plated M8 isolation spikes for the ultimate in isolation. The steel frame is manufactured from ERW mild steel tube 25.4 x 12.7 x 1.5mm providing a discrete, rigid and strong turntable isolation stand. The almost fully welded Turntable support is capable of supporting 20Kg without compromise. The limiting factor is the type of wall and fixings required for fitting the WMB G4 Turntable support.
The glass shelves are available in Clear or Black finish, manufactured and toughened to British Safety Standards EN 12105-02 and the real Oak veneer MDF wood top Black

Wood Shelf available in Real Oak Veneer Black finish 456 x 365 x 12mm
Glass Shelf available in Clear or Black finish 465mm x 365mm x 6mm
Bracket dimensions: height 225mm x depth 435mm x width 445mm.

Standard finish Black - Steel Frame work electrostatic powered coated for a superior, quality finish.

Black Zinc Plated M8 Isolation spikes with allen key adjustable facility.

6 Fixing holes provided for wall mounting .

Hand Made, Hand finished and polished by the craftsmen at Custom Design.

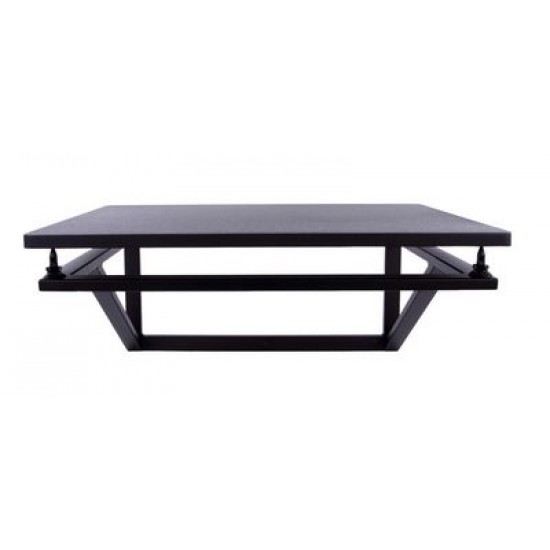

Image: HiFi Isolation Stand Wall Mounted Bracket WMB G4 in Black with 12mm Real Oak Veneer wood top

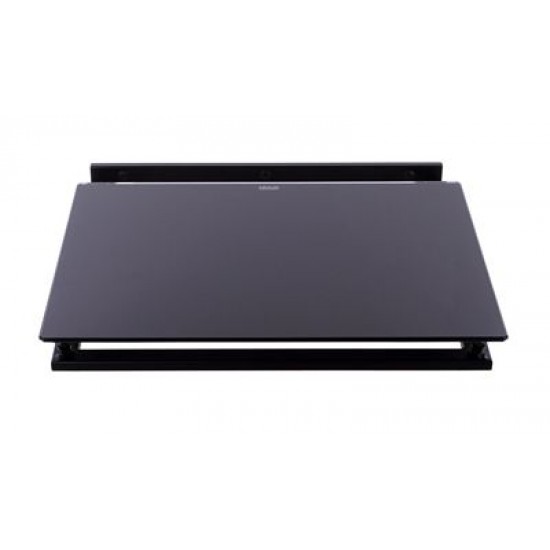

Image: HiFi Isolation Stand Wall Mounted Bracket WMB G4 in Black with 6mm Glass shelf - Black finish

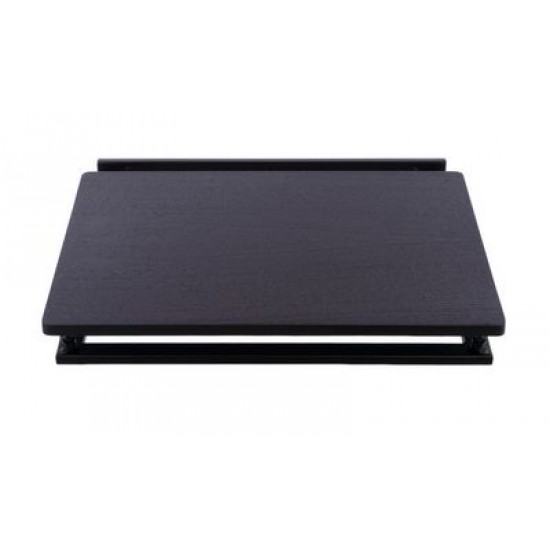

Image: HiFi Isolation Stand Wall Mounted Bracket WMB G4 in Black with 12mm Real Oak Veneer wood top

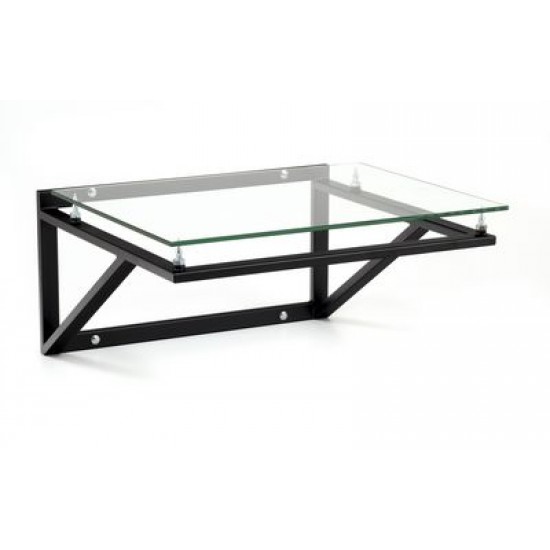

Image: HiFi Isolation Stand Wall Mounted Bracket WMB G4 in Black with 6mm Glass shelf - Clear finish

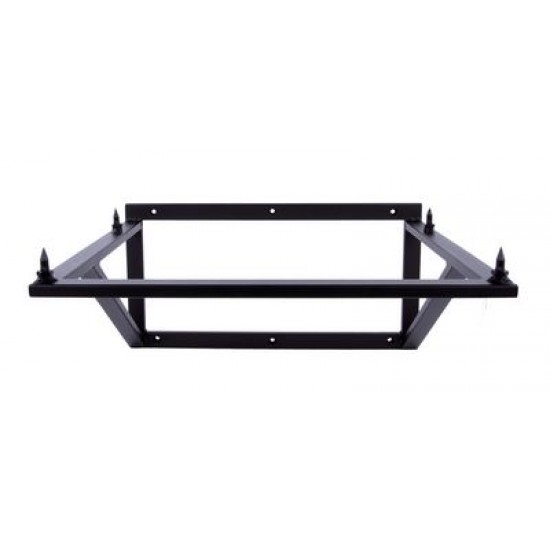

Image: HiFi Isolation Stand Wall Mounted Bracket WMB G4 in Black Electrostatic powered coating ERW Steel frame with 6 fixing points.

Image: HiFi Isolation Stand Wall Mounted Bracket WMB G4 in Black with 6mm Glass shelf - Clear finish
