Speaker Stands for book shelf speakers require a speaker stand support to position the listening experience to the perfect height of our customers specific requirements. Speaker stands also need to provide a complete rigid, isolating support platform for the speaker to operate at the maximum performance possible. This can be achieved not only by the integrity of the speaker stand, ie the number of supporting columns but the engineering incorporated in to the design, such as the type and number of fixings or the built in specialist isolation acoustic steel or the quality and thickness of materials involved, 4mm oiled and pickled steel for superior surface finish or 4mm acoustic steel for resonance energy absorption and conversion.
The speaker stands designed and manufactured by Custom Design provide the perfect isolating solution for speaker cabinets. Speaker cabinets resonate, therefore the best possible isolation points would be the strongest part, ie the corners which is why Custom Design provide an optional standard range of top plate dimensions and also provide a custom made service so our customers achieve the best possible listening experience and sound performance from their HiFi system.

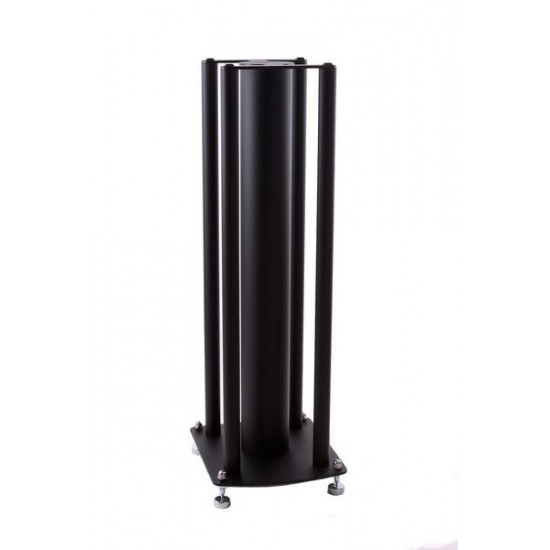

The central columns are manufactured from ERW BS EN 10305-3 steel which can be easily mass loaded with our unique specialist dampening, void dissipating non magnetic material, Inert Filler. The 4 satellite columns combine to provide a totally rigid speaker stand support. The performance improvements are substantial, especially to the dynamic range which seems more open and free compared to conventional central, mass loaded designs. Stereo imaging and precision timing bring more excitement to your listening experience all with an accurate and controlled bass performance. The FS 104 Signature FP Speaker Stands are a serious alternative to the usual traditional option speaker stand design. The satellite support columns are available in Black or White finish with the polished chrome and brushed chrome satellites optional extra. The laser precision cut, hand finished 4mm acoustic steel isolating top plates and 4mm CR4 oiled and pickled steel base plates for a superior quality finish. Designed on the open frame principle to have the minimal effect on the performance of your speakers. The unique 5 column design provide a totally rigid isolating platform and solid foundation for our customers who demand a more exciting and dynamic performance.
Custom Design's philosophy is to achieve business by product design and service success. Responsible social and environmentally friendly practices are an integral philosophy where ever we may retail our products in the world. Innovation is an integral part of Custom Design. Innovation is part of our company's culture and one of the main reasons for our success over the last 35 years.
The FS 104 Signature FP Speaker Stand support columns are manufactured from ERW BS EN 10305-3 steel and the centre support column can be mass loaded with our Inert Filler. The unique design includes a full 4mm Acoustic steel top plate and a full, precision laser cut 4mm base plate, which combine to provide a completely rigid and isolating speaker stand mount with the ability to control and fine tune the bass frequency by mass loading the centre support with Inert Filler.
The FS 104 Signature FP Speaker Stands are available in Black or White finish, supplied with easy access, allen key adjustable, Zinc plated M8 base isolation spikes. The FS 104 Signature FP Speaker Stand design provides a complete, rigid and solid foundation for speakers to provide a dynamic performance.
Rigidity is proven integral design feature which improves sound performance. The Custom Design philosophy of multi column supports provides superior sound quality and performance over traditional single column support design speaker stands.
Custom Design do not use Aluminium in the construction of any speaker stand designs. The natural properties of aluminium prevent speaker stands from performing to the best of their ability as mechanical feedback can be prevented, just like over mass loading. Which will result in reducing the dynamic range and the depth of bass frequency.
Standard finish: Black or White with Brushed Chrome or Polished Chrome Satellite supports optional extra.
FS 104 Signature FP - Full Acoustic Steel Top Plate - 165 x 180 x 4mm ( Acoustic Steel - Constrained Layer Dampening Process - Converts Resonance Energy to Negligible Heat - Changes the energy form)
FS 104 Signature FP - Full Laser cut Base Plate Dimension - 210 x 242 x 4mm
Cable tidy management base plate to prevent any resonance occurring inside the support column and effecting sound performance
Height available - 610mm (not including base isolation Spikes 25mm)
(2 Bags per centre support column of Inert Filler Recommended)
M8 Black Zinc Plated - Easy Access - Allen Key adjustable Base Isolation Spikes supplied as Standard.
Complimenting Black Zinc Spike Cover with easy access allen point.
